Monitor and reduce your mobile app size with Size Analysis (Early Access)

This is man.jpg.

And for some reason, this used to be in the Toyota iOS app at a non-negligible 14.6 MB. Conveniently, man.jpg was removed several months after coming to light.

This post is not about whether or not man.jpg should’ve been in the app in the first place, or how much smaller (MB) man.jpg could’ve been.

This post is about how, starting today, app size issues are easy for every developer to catch and fix on Sentry using Size Analysis (+ how we can shave 30% off a popular open-source app 😉).

Introducing Size Analysis (Now in Early Access)Introducing Size Analysis (Now in Early Access)

Size Analysis helps you monitor and reduce your mobile app’s size.

You might remember that Sentry acquired Emerge Tools. Size Analysis was Emerge’s first product, used by teams like Spotify, Square, and Tinder to ship the leanest app possible. Now anyone with a Sentry account can use the same tooling.

Using Size AnalysisUsing Size Analysis

Size Analysis works on any iOS or Android app, including if you’re using a cross-platform framework like React Native or Flutter. All you have to do is upload a mobile build.

You can integrate Size Analysis with CI to analyze app size every time you make a change, compare builds over time, and find opportunities to make the app smaller.

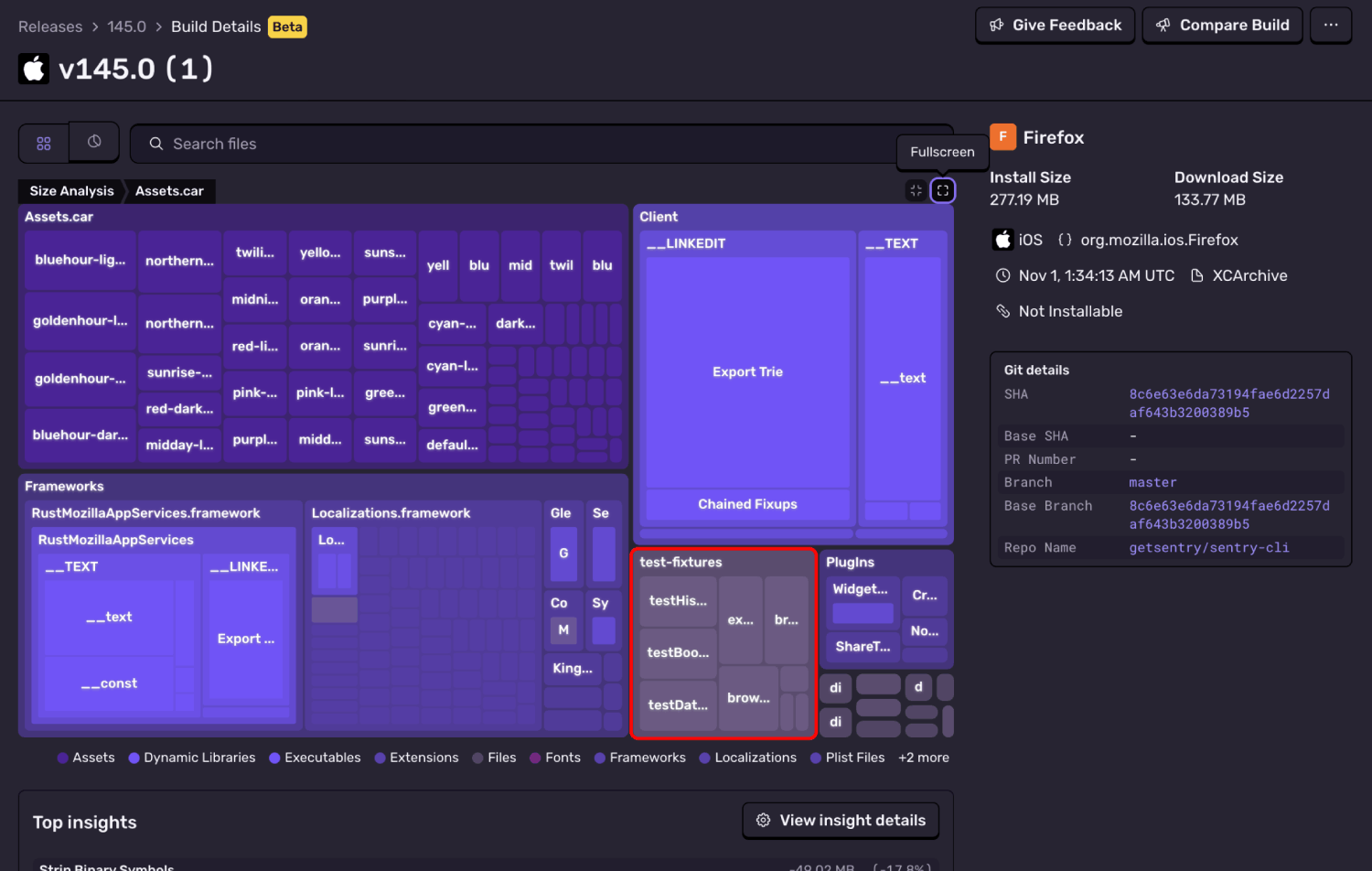

Let’s see what Size Analysis can do for the open-source Firefox iOS app. All we need to do is build the app and upload it to Sentry. Below is build analysis of v145.0. The treemap shows exactly where the app’s size is coming from:

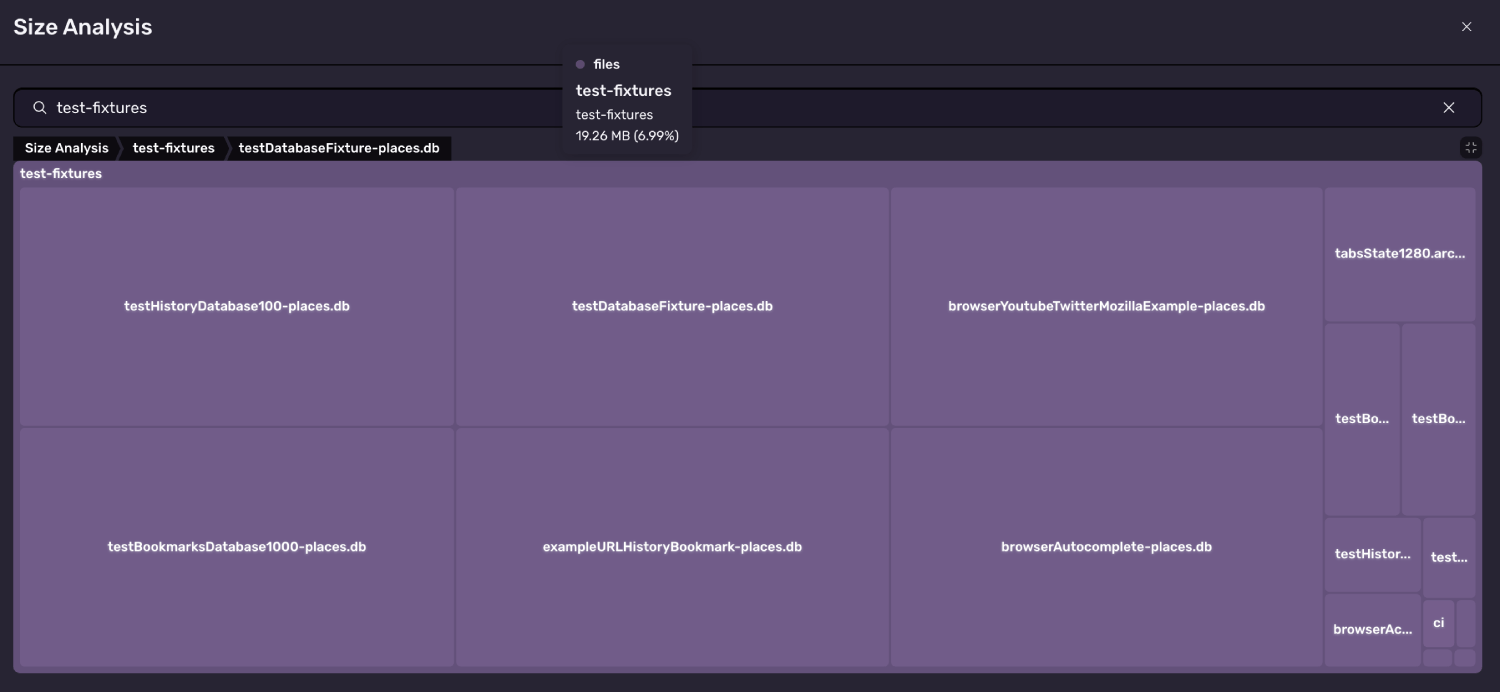

In the treemap, we can clearly see a test-fixtures node that doesn’t seem like it should be in prod. Unintended resources in prod happens way more than you’d think and the treemap provides an easy visualization to skim through what’s actually in your build.

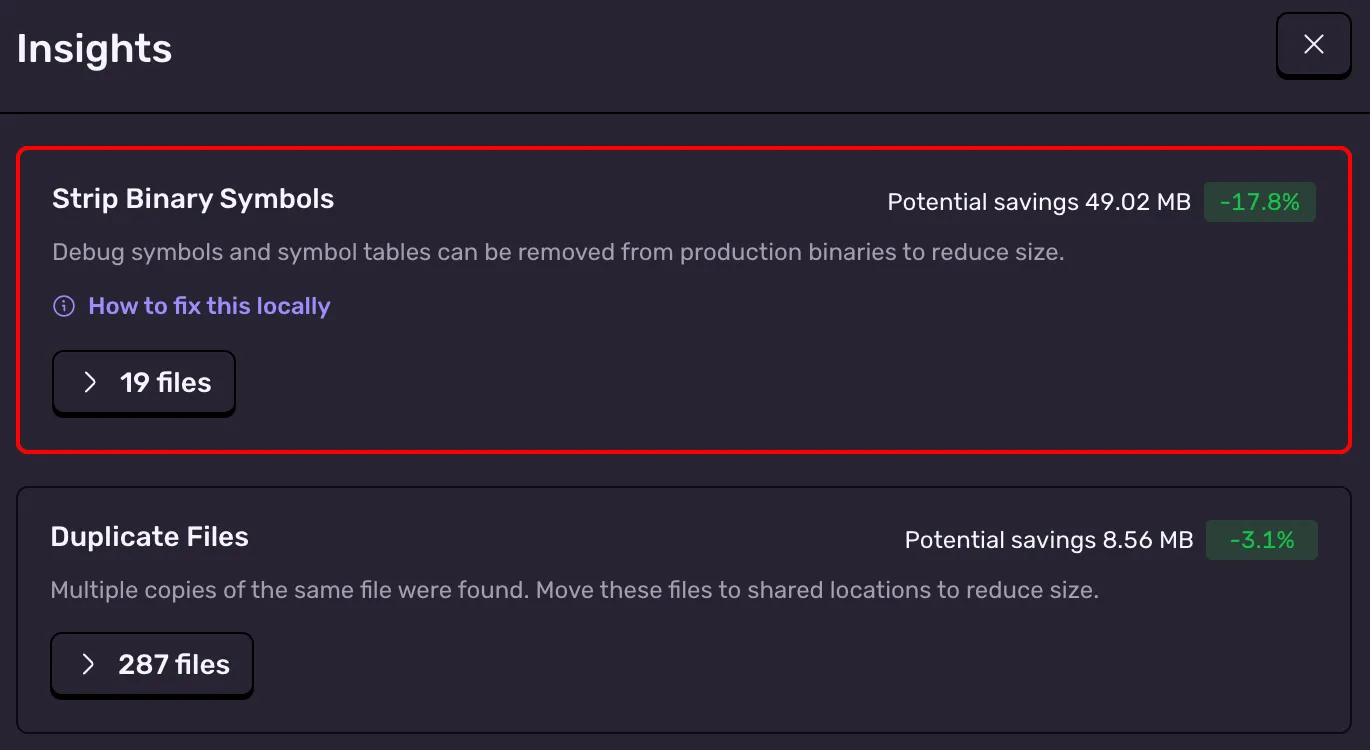

Below the treemap, we have “Insights”, which will show you opportunities to reduce the app’s size.

For the highlighted insight, we include a script for how you can apply the reduction (something Seer might be doing soon 👀). We’ve linked the docs below for a deeper explanation, but TL;DR:

• Stripping Binary Symbols: These symbols are used to symbolicate stack traces like a crash report. If you’re uploading DSYMs to a crash reporter, you don’t need the symbols in prod

We can use the provided script as a basis to cut Firefox's size by ~50 MB.

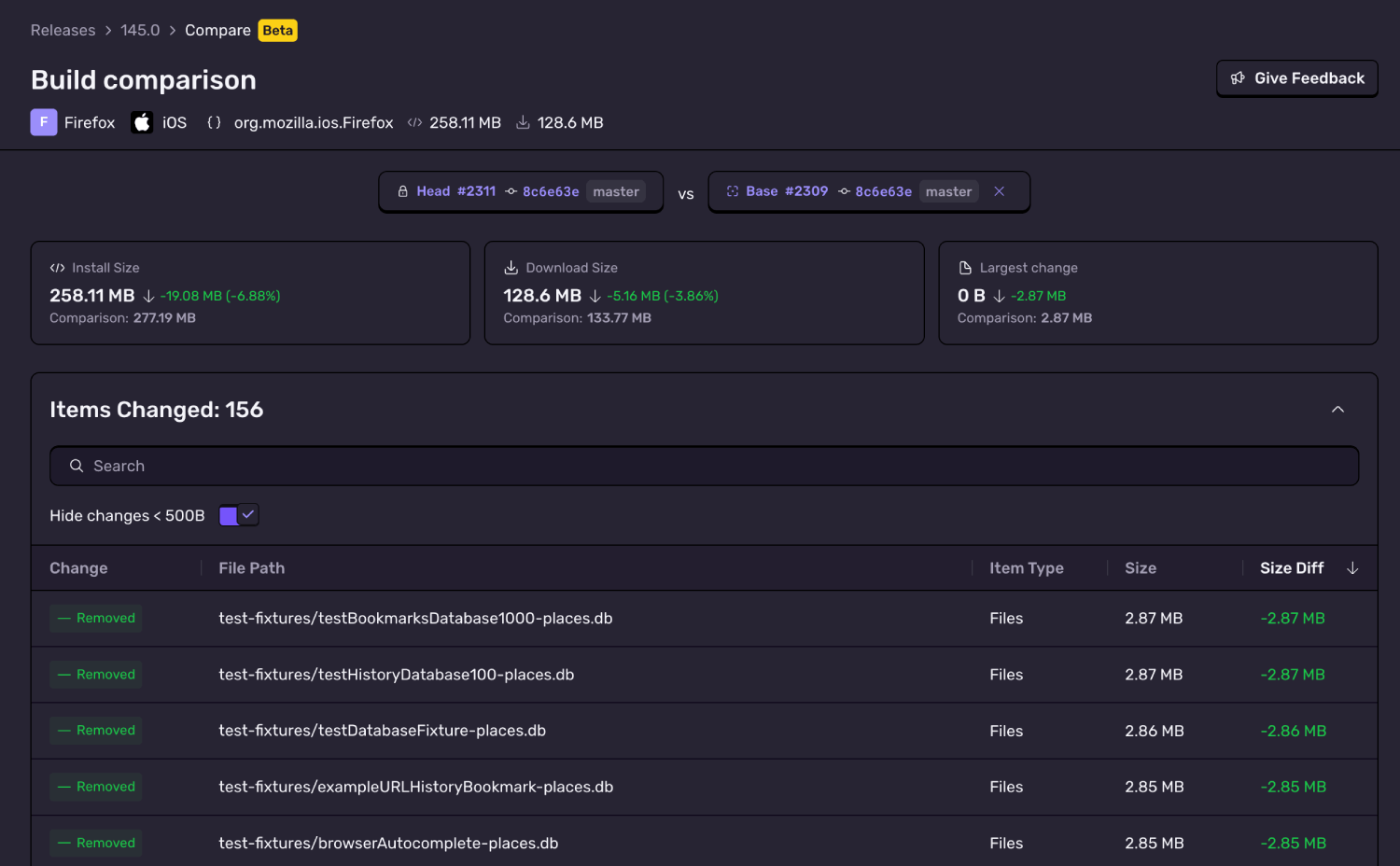

In either of these cases, Size Analysis’ Build Comparison will show exactly what changed between two builds. Below is the diff between the build with and without test-fixtures.

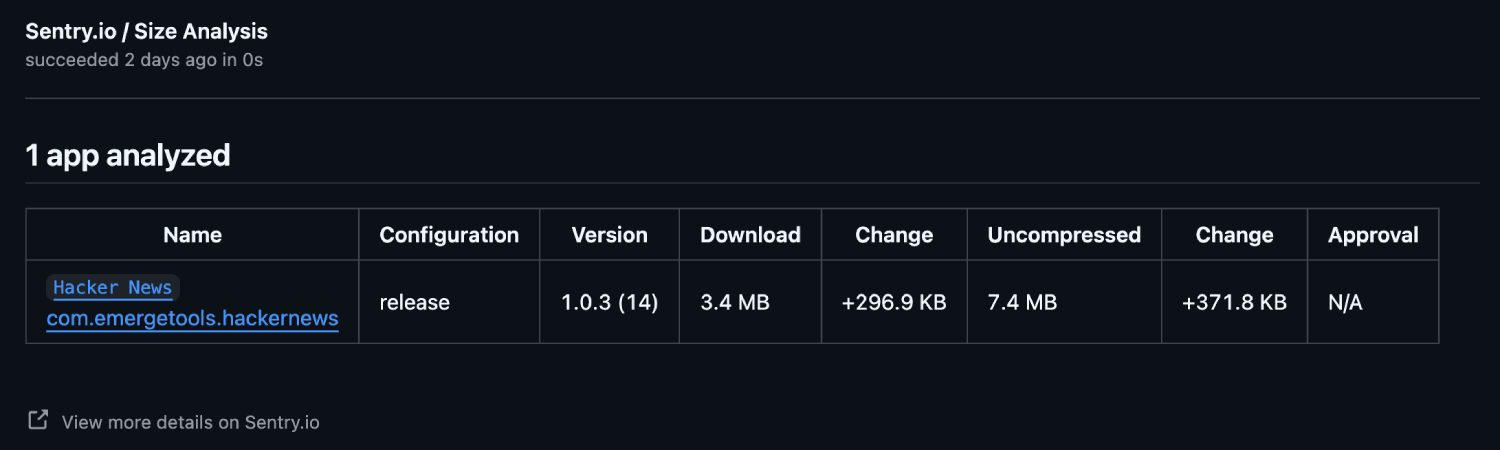

If you use Size Analysis in CI, these issues are likely caught at the PR-level, never reaching users. The easiest time to fix a regression is to catch it right when it’s introduced, which is why the CI checks are so critical.

We posted PRs for the two Firefox issues (test-fixtures, debug symbols). In total, the 2 PRs combined to reduce the size of Firefox by 67 MB, close to 30% of total install size.

For some users, a 14.6 MB man.jpg might not matter, and maybe even 67 MB doesn’t. But for others, it does.

Maybe your app is frequently downloaded on the go when users don’t have connection to WiFi. If you’re above the cellular download limit, you, like Uber, will see a significant install drop-off. Maybe your app is distributed to users on older devices or in network-constrained conditions, where every byte counts.

Larger app sizes and bloat can reduce install rates and conversions, are a common reason for uninstalls, and can create downstream technical impacts.

To be clear, the above fixes are not a Firefox team issue, they are a tooling issue. If you’ve seen the Emerge Tools Twitter, you’ll know that many apps encounter these problems. Existing app size tooling is limited and it's easy to unknowingly introduce bloat.

Getting started with Size AnalysisGetting started with Size Analysis

Size Analysis is now in Early Access for Sentry users and we're excited to keep improving it! To start using size analysis:

• Have a Sentry account (create an account for free here)

• Turn on your org’s Early Adopter settings

• Follow these docs for uploading and integrating into CI

Aside from Size Analysis, we’ve already open-sourced two Emerge products:

1. Launch Booster - make your iOS app launch faster

2. Reaper - find dead code using runtime analysis

We have more exciting news coming on this front so stay tuned for updates and news about Size Analysis!
